Reply 1 : The Newb's Guide to Repasting Your G73
Here is what you’ll need if you want to repaste.
1 Medium Sized Phillips preferably with a magnetic head
1 Small Flat Head for prying the keyboard tabs and unlocking the little latches on cables
A quality set of tweezers
A tube of Innovative Cooling Diamond 7 or 24 (the number is the quantity not quality)
A ruler and template to show you how small 3-5mm truly is.
And some sort of cleaner, I used alcohol preps, but any lint free cloth will work. Q-tips and alcohol will work fine.
I also recommend making a chart to place all your screws in. This will help you make sure you don’t loose any or forget to put them in. It also serves as a guide for re-assembly. Here is what mine looked like after disassembly.
BEFORE YOU START, unplug your AC adapter and remove your battery. It wouldn't hurt to hold down the power button for 30 seconds to make sure everything is discharged.
Now the BTO Video is pretty self explanatory up until 3:15 seconds when you remove the keyboard.
There are 5 keyboard tabs, insert flat head screw driver, push away from your body (toward the screen) to unlock tab. If you are in the right spot the keyboard should pop up slightly. Repeat 4 more times.
When peeling off keyboard pull from the base where it is still attached. Don’t bend the keyboard. Use a firm but gentle upward pressure until the tape gives. The 1st time is supposed to be very stiff. Since I was not the first to remove my keyboard I cannot comment on how hard it is, but now that it has been done at least twice it is very easy to remove and it doesn’t get damaged.
Once the keyboard is removed lay it down over the track pad like so.
Now unlock the 2 ribbons. One for the Backlight the right and one for the Keyboard on the left. (unlock top and bottom of each). Remove ribbons and keyboard.
OK Good, if you can do that you can do the rest too! Set aside your keyboard. Now remove the 4 Under keyboard screws just like in the BTO video.
Now the hardest part….
There are two Ribbons with easy latches, I’ll just show one because they are the same.

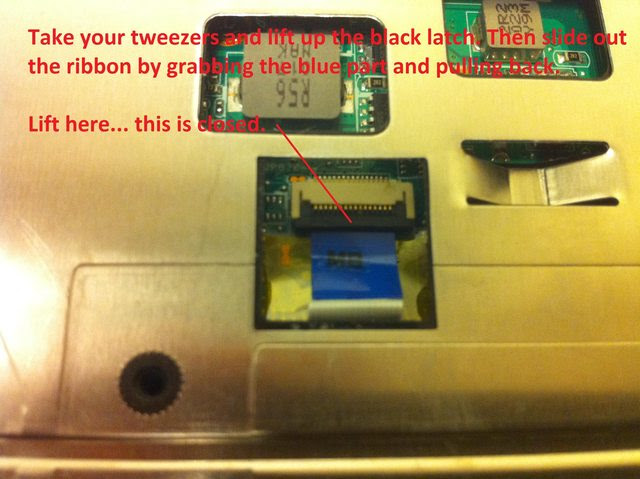

Lift the black latches on the two ribbon connectors. Then use tweezers to remove the two ribbons.
(read Gorwell’s post on this, he has excellent pictures). Gently pry up with a small flat head screw driver on each side, I found the side closer the screen released more easily. Look at the pictures to make sure you understand what you are prying on before you try. Also be careful if you use tweezers because I almost ripped my wires off when the tweezers slipped. That is why I recommend using the screw driver to slowly pry.
Remove service panel, check for thermal pad (like BTO says too!)
Remove card reader card.
Remove the 3 motherboard screws, 2 on the right, 1 in between the two cables.
Lift cable immediately left of the fan straight up.
Use tweezers to lift up the tape on the ribbon to the left of this. Then while holding the tape, pull the ribbon straight back toward the monitor, it should come right out.
Now the two ribbons on the bottom in the middle. For the right one lift the tab and slide out the ribbon as you did with the earlier latches.
For the left one remove the tape and pull the ribbon back toward you. Be especially careful putting it back together. If it doesn't seat all the way, it won't work.
Remove the blu-tooth cable if you have one. I don’t so I cannot comment on it.
Remove Fan Screws x6 just like the BTO video says. The top left screw may be hidden behind some tape, just move it aside.
Place a towel over your screen to protect it.
Pry pastic on Right side (so that the VGA port clears) and flip the motherboard over onto the screen. I cannot describe it better than BTO does. Watch out that none of the cables catch on anything. You may need to set the screen down flat on the table as mine slid off the computer.
Once the MB is flipped, you will see the GPU heatsink on the right side.
Loosen the four screws holding it on (they are mounted on springs and do not come out). Notice the numbers next to the screws, this is order you retighten them in. Gently pull the heatsink off of the GPU.
If you loosen the tape on top of where the fan connects to the heatsink, you can flip the heatsink over without having to move the cables connected to the fan. Be careful when you move the heatsink because if it is still connected to the fan you might pull on the cables.
Now take your q-tips, lint free cloth and alcohol or whatever and clean the old paste off the of the GPU die and the heatsink. I used alcohol preps from a hospital. Once they are both clean they should look like this.
Now get out your ruler and contemplate the meaning of a 5mm ball. I applied too much the first time so I wanted to do it over. 5mm is literally the size of a pea. My first time I probably applied 7mm, I am hoping using less will lower my temps even more (after testing I learned it did not). I measured it out and made a template just so I could get it right.
I am using Innovative Cooling Diamond 7 (24 is the same just a bigger tube). I cannot comment on the performance of other thermal compounds. The only other one I have used was in the year 2000 when I overclocked my Pentium III 600E, and I have no idea what it was. ICD7 works great though. It took my G73 from 89C in furmark on stock paste to 83C w/ICD7
Now this stuff is very thick and hard to work with. I tried heating up in a coffee cup with hot water to make it easier to work with, but it didn’t really help. Maybe if I had left it in the water longer. Keep the cap on so water doesn’t get in the syringe, you don’t want water on your GPU when you seal it up.
Now apply your thermal compound.
I am probably closer to 5.5mm than 5mm, but hopefully that is ok. My 5mm template looks pretty close. If you apply too much use tweezers and an alcohol prep to remove some (or a q-tip as others have done).
Now reapply your heatsink. Chastity recommended giving the HS a little twist. She has great temps, so I’m gunna try that too (I couldn’t do it, not enough room). Then apply the screws and tighten in the order of numbers.
Once your heatsink is back on put the fan back onto the heat vents with the supplied tape.
Now flip your motherboard back over. If you set the screen on the table lift it back onto the edge of the laptop so the cables are not stretched. Guide the heatsink vents back into the body housing. Watch out for cables, especially the two that go on top of the motherboard, if they get stuck underneath, you’ll have to take the board back out again. Also if you removed the heatsink from the fan, be sure it is seated correctly and taped down tightly or it will affect your temps.
Once everything looks aligned, pry the right side of the body and gently push the VGA port in. Check your fans and make sure they are in place, mine had to be pushed down and adjusted. Also make sure the motherboard cables don’t get stuck underneath.
NOW it is time for reassembly!
It may help to watch the BTO Video in reverse 1 minute at a time and follow that along.
1) Now reinsert the 6 fan screws.
2) Now reconnect your 4 motherboard cables on the top. The top right one just snaps on. The two taped ribbons slide in and then you put the tape back down. Be sure they are all the way in. Mine looked like they were in but were NOT. DOUBLE TRIPPLE CHECK! The bottom right is just like all the other latches we did. Make sure it is in the up open position. Take your tweezers, grab the blue part of the ribbon, slide it in, then push down the latch.
3) Now put back the 3 motherboard screws. Two on the right side, one in between the top 2 cables.
4) Put the card reader plastic back in.
5) To reapply the service panel insert the side closest to your first then push it down until it locks into place. Make sure nothing is sticking out and gets caught in it (this shouldn’t happen, if you have a loose cable that is in the way check your connections). Push down around all the edges to make sure it is on right.
6) Now gently reconnect your speaker cable and the two blue ribbons. Should be easy by now. Use your tweezers to make sure the latches are up and open. Slide in the cable while holding the blue part with your tweezers. Then close the latch with your finger. Be careful with the speaker cable, I did it by hand and then gave it a gentle push with my mini flat head to make sure it was in. One slip and you’ll rip the wires so be careful!
7) Now put the 4 under keyboard screws back in.
Rewind your BTO video to 4:00 minutes. That is where we are.
8) Now place your keyboard upside down on the bottom of the G73 with the F keys on your side like so…
If you removed your keyboard carefully it should just need some minor straightening.
Flip over the small backlight wire (gold side up) before you connect it. Once you flip the keyboard back on it should be aligned correctly. Use your tweezers and slide the two cables back into place and then push the locks to the right.
The left cable has locks on the top and bottom. I had to hold my keyboard up perpendicular to the G73 body to get enough slack to connect the cables.
9) Once the cables are connected, insert the bottom of the keyboard (side closest to you) and lay it back down. Push in the 5 tabs and give the keyboard a firm rubdown to reseat the tape.
10) Now remove your towel/T-shirt etc and flip the monitor back over into the pins near the heat vents.
11) Spin the G73 180 degrees so you can more easily access the screws.
12) Put back the 6 long silver screws and the 2 regular screws (the 2 regular ones go on the outside).
BTO Video time 2:34.
13) Once the hinge screws are in, put the rear cover back on. It just snaps on. Push down on all the edges and the tops of the hinge to make sure it is seated correctly.
14) The rest is super easy. Flip the G73 back over and insert the 3 Memory and WiFi screws.
Insert the two screws which go under the hard drive. Put the HDD back in and screw them in. And if you are like me and have only 1 HD bracket (but 2 HDDs), put your jury-rigged cardboard back in place.
Now put the 10 main body screws back in.
Then 2 battery screws.
The 2 DVD tray screws go in on the right.
Slide the DVD back in and put the DVD retaining screw back in.
Put the HDD cover back on, back first, snap it down, and put in the two screws.
Put the battery back in and STOP, take a deep breath. You are DONE! Now pray it turns on and everything works OR you will freak out!
DAMN, mine won’t even power on, what did I miss! Ahhh! The wifi wires are touching the reset button! Too bad it took me 90 minutes and a reassembly to figure that out!
Working on the rest I just wanted to be sure my photo were working correctly. I will add links to BTO and many other posts.
1 Medium Sized Phillips preferably with a magnetic head
1 Small Flat Head for prying the keyboard tabs and unlocking the little latches on cables
A quality set of tweezers
A tube of Innovative Cooling Diamond 7 or 24 (the number is the quantity not quality)
A ruler and template to show you how small 3-5mm truly is.
And some sort of cleaner, I used alcohol preps, but any lint free cloth will work. Q-tips and alcohol will work fine.
I also recommend making a chart to place all your screws in. This will help you make sure you don’t loose any or forget to put them in. It also serves as a guide for re-assembly. Here is what mine looked like after disassembly.
BEFORE YOU START, unplug your AC adapter and remove your battery. It wouldn't hurt to hold down the power button for 30 seconds to make sure everything is discharged.
Now the BTO Video is pretty self explanatory up until 3:15 seconds when you remove the keyboard.
There are 5 keyboard tabs, insert flat head screw driver, push away from your body (toward the screen) to unlock tab. If you are in the right spot the keyboard should pop up slightly. Repeat 4 more times.
When peeling off keyboard pull from the base where it is still attached. Don’t bend the keyboard. Use a firm but gentle upward pressure until the tape gives. The 1st time is supposed to be very stiff. Since I was not the first to remove my keyboard I cannot comment on how hard it is, but now that it has been done at least twice it is very easy to remove and it doesn’t get damaged.
Once the keyboard is removed lay it down over the track pad like so.
Now unlock the 2 ribbons. One for the Backlight the right and one for the Keyboard on the left. (unlock top and bottom of each). Remove ribbons and keyboard.
OK Good, if you can do that you can do the rest too! Set aside your keyboard. Now remove the 4 Under keyboard screws just like in the BTO video.
Now the hardest part….
There are two Ribbons with easy latches, I’ll just show one because they are the same.
Lift the black latches on the two ribbon connectors. Then use tweezers to remove the two ribbons.
(read Gorwell’s post on this, he has excellent pictures). Gently pry up with a small flat head screw driver on each side, I found the side closer the screen released more easily. Look at the pictures to make sure you understand what you are prying on before you try. Also be careful if you use tweezers because I almost ripped my wires off when the tweezers slipped. That is why I recommend using the screw driver to slowly pry.
Remove service panel, check for thermal pad (like BTO says too!)
Remove card reader card.
Remove the 3 motherboard screws, 2 on the right, 1 in between the two cables.
Lift cable immediately left of the fan straight up.
Use tweezers to lift up the tape on the ribbon to the left of this. Then while holding the tape, pull the ribbon straight back toward the monitor, it should come right out.
Now the two ribbons on the bottom in the middle. For the right one lift the tab and slide out the ribbon as you did with the earlier latches.
For the left one remove the tape and pull the ribbon back toward you. Be especially careful putting it back together. If it doesn't seat all the way, it won't work.
Remove the blu-tooth cable if you have one. I don’t so I cannot comment on it.
Remove Fan Screws x6 just like the BTO video says. The top left screw may be hidden behind some tape, just move it aside.
Place a towel over your screen to protect it.
Pry pastic on Right side (so that the VGA port clears) and flip the motherboard over onto the screen. I cannot describe it better than BTO does. Watch out that none of the cables catch on anything. You may need to set the screen down flat on the table as mine slid off the computer.
Once the MB is flipped, you will see the GPU heatsink on the right side.
Loosen the four screws holding it on (they are mounted on springs and do not come out). Notice the numbers next to the screws, this is order you retighten them in. Gently pull the heatsink off of the GPU.
If you loosen the tape on top of where the fan connects to the heatsink, you can flip the heatsink over without having to move the cables connected to the fan. Be careful when you move the heatsink because if it is still connected to the fan you might pull on the cables.
Now take your q-tips, lint free cloth and alcohol or whatever and clean the old paste off the of the GPU die and the heatsink. I used alcohol preps from a hospital. Once they are both clean they should look like this.
Now get out your ruler and contemplate the meaning of a 5mm ball. I applied too much the first time so I wanted to do it over. 5mm is literally the size of a pea. My first time I probably applied 7mm, I am hoping using less will lower my temps even more (after testing I learned it did not). I measured it out and made a template just so I could get it right.
I am using Innovative Cooling Diamond 7 (24 is the same just a bigger tube). I cannot comment on the performance of other thermal compounds. The only other one I have used was in the year 2000 when I overclocked my Pentium III 600E, and I have no idea what it was. ICD7 works great though. It took my G73 from 89C in furmark on stock paste to 83C w/ICD7
Now this stuff is very thick and hard to work with. I tried heating up in a coffee cup with hot water to make it easier to work with, but it didn’t really help. Maybe if I had left it in the water longer. Keep the cap on so water doesn’t get in the syringe, you don’t want water on your GPU when you seal it up.
Now apply your thermal compound.
I am probably closer to 5.5mm than 5mm, but hopefully that is ok. My 5mm template looks pretty close. If you apply too much use tweezers and an alcohol prep to remove some (or a q-tip as others have done).
Now reapply your heatsink. Chastity recommended giving the HS a little twist. She has great temps, so I’m gunna try that too (I couldn’t do it, not enough room). Then apply the screws and tighten in the order of numbers.
Once your heatsink is back on put the fan back onto the heat vents with the supplied tape.
Now flip your motherboard back over. If you set the screen on the table lift it back onto the edge of the laptop so the cables are not stretched. Guide the heatsink vents back into the body housing. Watch out for cables, especially the two that go on top of the motherboard, if they get stuck underneath, you’ll have to take the board back out again. Also if you removed the heatsink from the fan, be sure it is seated correctly and taped down tightly or it will affect your temps.
Once everything looks aligned, pry the right side of the body and gently push the VGA port in. Check your fans and make sure they are in place, mine had to be pushed down and adjusted. Also make sure the motherboard cables don’t get stuck underneath.
NOW it is time for reassembly!
It may help to watch the BTO Video in reverse 1 minute at a time and follow that along.
1) Now reinsert the 6 fan screws.
2) Now reconnect your 4 motherboard cables on the top. The top right one just snaps on. The two taped ribbons slide in and then you put the tape back down. Be sure they are all the way in. Mine looked like they were in but were NOT. DOUBLE TRIPPLE CHECK! The bottom right is just like all the other latches we did. Make sure it is in the up open position. Take your tweezers, grab the blue part of the ribbon, slide it in, then push down the latch.
3) Now put back the 3 motherboard screws. Two on the right side, one in between the top 2 cables.
4) Put the card reader plastic back in.
5) To reapply the service panel insert the side closest to your first then push it down until it locks into place. Make sure nothing is sticking out and gets caught in it (this shouldn’t happen, if you have a loose cable that is in the way check your connections). Push down around all the edges to make sure it is on right.
6) Now gently reconnect your speaker cable and the two blue ribbons. Should be easy by now. Use your tweezers to make sure the latches are up and open. Slide in the cable while holding the blue part with your tweezers. Then close the latch with your finger. Be careful with the speaker cable, I did it by hand and then gave it a gentle push with my mini flat head to make sure it was in. One slip and you’ll rip the wires so be careful!
7) Now put the 4 under keyboard screws back in.
Rewind your BTO video to 4:00 minutes. That is where we are.
8) Now place your keyboard upside down on the bottom of the G73 with the F keys on your side like so…
If you removed your keyboard carefully it should just need some minor straightening.
Flip over the small backlight wire (gold side up) before you connect it. Once you flip the keyboard back on it should be aligned correctly. Use your tweezers and slide the two cables back into place and then push the locks to the right.
The left cable has locks on the top and bottom. I had to hold my keyboard up perpendicular to the G73 body to get enough slack to connect the cables.
9) Once the cables are connected, insert the bottom of the keyboard (side closest to you) and lay it back down. Push in the 5 tabs and give the keyboard a firm rubdown to reseat the tape.
10) Now remove your towel/T-shirt etc and flip the monitor back over into the pins near the heat vents.
11) Spin the G73 180 degrees so you can more easily access the screws.
12) Put back the 6 long silver screws and the 2 regular screws (the 2 regular ones go on the outside).
BTO Video time 2:34.
13) Once the hinge screws are in, put the rear cover back on. It just snaps on. Push down on all the edges and the tops of the hinge to make sure it is seated correctly.
14) The rest is super easy. Flip the G73 back over and insert the 3 Memory and WiFi screws.
Insert the two screws which go under the hard drive. Put the HDD back in and screw them in. And if you are like me and have only 1 HD bracket (but 2 HDDs), put your jury-rigged cardboard back in place.
Now put the 10 main body screws back in.
Then 2 battery screws.
The 2 DVD tray screws go in on the right.
Slide the DVD back in and put the DVD retaining screw back in.
Put the HDD cover back on, back first, snap it down, and put in the two screws.
Put the battery back in and STOP, take a deep breath. You are DONE! Now pray it turns on and everything works OR you will freak out!
DAMN, mine won’t even power on, what did I miss! Ahhh! The wifi wires are touching the reset button! Too bad it took me 90 minutes and a reassembly to figure that out!
Working on the rest I just wanted to be sure my photo were working correctly. I will add links to BTO and many other posts.
Reply 2 : The Newb's Guide to Repasting Your G73
Very nicely done mate! Will help a lot of noobs here ^^.
Reply 3 : The Newb's Guide to Repasting Your G73
Thank you for this. Now I have the guts on repasting it by myself. I'm just waiting for my ICD7 to arrived.
Reply 4 : The Newb's Guide to Repasting Your G73
Thanks a lot dude, let this guide sticky at top of the forum please.
Reply 5 : The Newb's Guide to Repasting Your G73
Don't forget to put a big red warning line on top of the post: Do it on your own risk .. not taking any responsibility ...
No1 should do this if having no experience with small electronics repair.
A falling screw can short the motherboard out for good, static electricity can too.
And might be a good idea to invest 10$ to more professional tools
Nice work with the photos and tutorial.
No1 should do this if having no experience with small electronics repair.
A falling screw can short the motherboard out for good, static electricity can too.
And might be a good idea to invest 10$ to more professional tools
Nice work with the photos and tutorial.
Reply 6 : The Newb's Guide to Repasting Your G73
Since the finish on the GPU heatsink wasn't amazing, I also tinned it, according to Innovation Cooling advice. May want to add that to your guide.
Quote:
|
A component to paste application to be mindful of is the roughness of the mating surfaces. If you have only lapped up to an 800 grit or less it may be necessary to manually wet the surface the surfaces prior to applying a bead of compound. In this example a light haze of compound was applied to push out any air bubbles or air pockets that may have found purchase in scratches or surface finish |
Reply 7 : The Newb's Guide to Repasting Your G73
Thanks I'm not done yet, still have a lot of work to do. I want to put links to all my sources and cite all the posters who contributed. I have to go eat now though.
Reply 8 : The Newb's Guide to Repasting Your G73
Thanks for this. Hopefully I'll be getting an new G73 from Asus soon, and I'll keep this in mind if I'm going to repaste.
I'll admit that I'm a "newb" and am quite wary of opening this thing up. But...I'll think about it.
I'll admit that I'm a "newb" and am quite wary of opening this thing up. But...I'll think about it.
Reply 9 : The Newb's Guide to Repasting Your G73
Quote:
|
Originally Posted by alaric_t@hotmail.com
Thanks for this. Hopefully I'll be getting an new G73 from Asus soon, and I'll keep this in mind if I'm going to repaste.
I'll admit that I'm a "newb" and am quite wary of opening this thing up. But...I'll think about it. |
Không có nhận xét nào:
Đăng nhận xét
